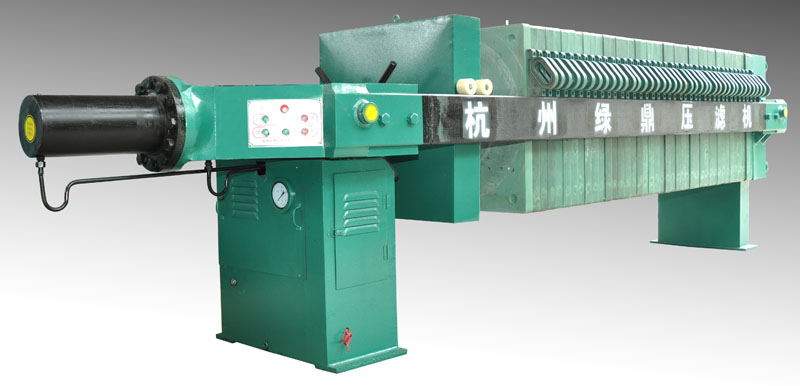

Mechanical pressure maintaining series chamber type filter press

Our mechanical type filter press is a kind of batch pressure filtration facility for solid and liquor separation of all kinds of suspension liquid. It has excellent separation effect. And it is widely used in petroleum, chemical, fuel, metallurgy, pharmaceutical, food, paper-making, coal washing and sewage treatment fields. In addition, it has advantages of wide scope of application, reasonable design, reliable property, simple for operation and etc.

1.Enhanced polypropylene filter plate, filter frame developed on patent technology, high strength, light weight, anti-corrosive, acid and base resistant, non-toxic, and no odor

2.Hydraulic pressure, max pressure: 14MPa

filter pressure			<0.6MPa			motor power			1.5KW
hydraulic working pressure			≤16MPa			max oil temperature for application			<80℃
inner diameter of cylinder			140mm			maximum stroke of cylinder			350mm
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
8	12	13	25	100	2040	840	1150	1.26	50	30
10	15	16		125	2190			1.30
12	18	19		150	2340			1.34
15	23	24		188	2590			1.39
18	28	29		225	2840			1.47
20	31	32		250	2990			1.51
25	39	40		313	3390			1.65
28	44	45		350	3640			1.72
30	47	48		375	3790			1.82

Notes: Above data is for plate thickness of 50mm and it will change when plate thickness changes.

filter pressure			<0.6MPa			motor power			1.5KW
hydraulic working pressure			≤20MPa			max oil temperature for application			<80℃
inner diameter of cylinder			160mm			maximum stroke of cylinder			500mm
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
20	19	20	30	320	3035	1075	1265	2.13	80	40
30	29	30		480	3065			2.46
40	39	40		640	4235			2.79
50	49	50		800	4835			3.12
60	59	60		960	5435			3.44
70	69	70		1120	6035			3.93
80	79	80		1280	6635			4.28

Notes: Above data is for plate thickness of 60mm and it will change when plate thickness changes.

filter pressure			<0.6MPa			motor power			1.5KW
hydraulic working pressure			≤20MPa			max oil temperature for application			<80℃
inner diameter of cylinder			180mm			maximum stroke of cylinder			500mm
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
40	31	32	30	640	3800	1420	1372	3.33	100	50
50	39	40		800	4200			3.64
60	47	48		960	4760			3.95
70	55	56		1120	5240			4.40
80	63	64		1280	5720			4.72
90	71	72		1440	6200			5.00
100	79	80		1600	6680			5.55

Notes: Above data is for plate thickness of 60mm and it will change when plate thickness changes.

filter pressure			<0.6MPa			motor power			1.5KW
hydraulic working pressure			≤20MPa			max oil temperature for application			<80℃
inner diameter of cylinder			180mm			maximum stroke of cylinder			500mm
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
40	23	24	30	600	3320	1500	1452	4.51	100	50
50	29	30		750	3680			4.79
60	35	36		900	4040			5.07
70	41	42		1050	4400			5.36
80	47	48		1200	4760			5.64
90	53	54		1350	5120			5.92
100	59	60		1500	5480			6.20
120	71	72		1800	6200			6.77

Notes: Above data is for plate thickness of 60mm and it will change when plate thickness changes.

filter pressure			<0.6MPa			motor power			4KW
hydraulic working pressure			≤20MPa			max oil temperature for application			<80℃
inner diameter of cylinder			250mm			maximum stroke of cylinder			600mm
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
100	37	38	30	1500	4535	1758	1573	7750	130	50
120	45	46		1875	5015			8430
140	53	54		2100	5495			8850
150	56	57		2250	5675			9135
160	61	62		2400	5975			9390
180	67	68		2700	6335			9860
200	75	76		3000	6815			10420
250	95	96		3750	7955			11720

Notes: Above data is for plate thickness of 60mm and it will change when plate thickness changes.

Chemical: dyes, pigment, caustic soda, sodium carbonate, white carbon black, saponin, plumbago, bleaching powder, lithopone, fluorescent powder, potassium chlorate, potassium sulphate, ferrous sulfate, copper sulfate, silver sulfate, barium sulfate, ferric oxide, water purifying agent (aluminum sulfate, aluminium polychlorid, aluminium chloride)

Medical: antibiotics(aureomycin, erythromycin, spiramycin, jinggangmeisu, midecamycin, tetracycline, berberine, oxytetracycline), calcium phytic acid, traditional Chinese medicine, organophosphorus, saccharifying enzyme

Food: Shaoxing wine, white spirit, juice, beverage, beer, yeast, citric acid, vegetable protein, sodium cyclamate, glucose, maltose, stevioside, starch sugar, starch, rice flour, corn steep liquor, gum, monosodium glutamate, spice, oral liquid, soymilk, seaweed

Metallurgy: gold ore, silver ore, copper ore, iron ore, zinc ore, tombarthite and other powder ores　

Oil refining: white oil, sesame oil, light oil, glycerol, machine oil, vegetable oil　　

Argil: kaoline, bentonite, activated clay, porcelain clay, electronic ceramic clay

Sewage treatment: chemical sewage, smelting sewage, electroplating sewage, leather sewage, dyeing sewage, brewing sewage, pharmaceutical sewage, paper-making sewage, daily sewage
