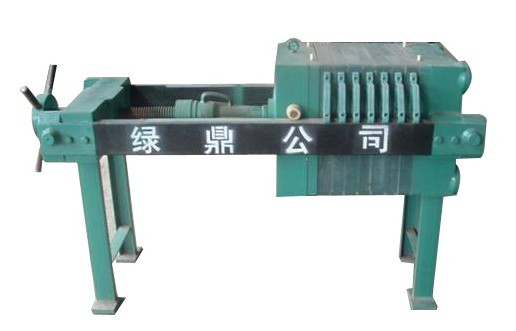

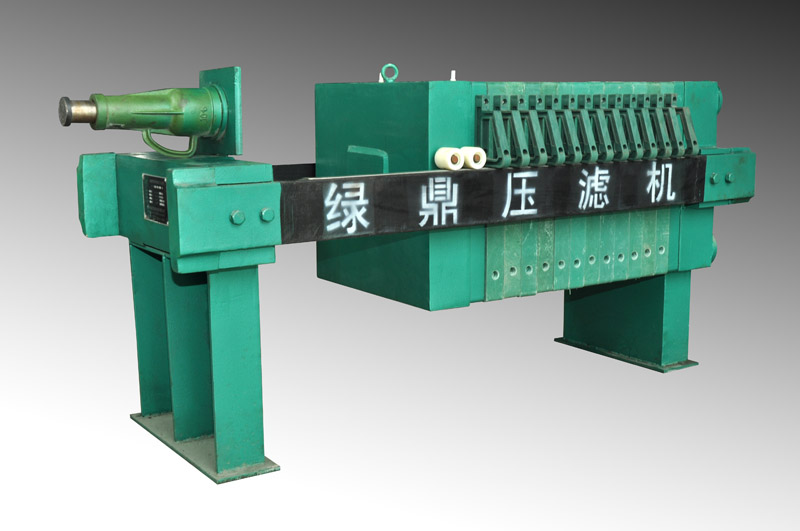

Mechanical type filter press

Our mechanical type filter press is a kind of batch pressure filtration facility for solid and liquor separation of all kinds of suspension liquid. It has excellent separation effect. And it is widely used in petroleum, chemical, fuel, metallurgy, pharmaceutical, food, paper-making, coal washing and sewage treatment fields. In addition, it has advantages of wide scope of application, reasonable design, reliable property, simple for operation and etc.

filter pressure			<0.6MPa			max oil temperature for application			<80℃
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
2	10	13	30	31	1552	820	795	0.47	50	30
3	14	15		45	1796			0.50
4	18	19		59	2040			0.54
5	23	24		76	2345			0.58
6	27	28		90	2598			0.62
8	27	38		124	3199			0.70

Notes: Above data is for plate thickness of 30mm it will change when plate thickness changes.

filter pressure			<0.6MPa			max oil temperature for application			<80℃
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
4	9	10	25	50	1465	890	1380	0.43	50	30
6	14	15		75	1720			0.48
8	19	20		100	1975			0.53
10	24	25		125	2230			0.58
12	29	30		150	2485			0.63
14	34	35		175	2740			0.68

Notes: Above data is for plate thickness of 50mm and it will change when plate thickness changes.

filter pressure			<0.6MPa			max oil temperature for application			<80℃
filtering area ㎡	filter plates	straining chambers	thickness of filter cake mm	cubic capacity of straining chamberL	boundary dimension(mm)			weight of machine t	diameter of feed pipe mm	diameter of outlet pipe mm
					L	W	H
8	12	13	25	100	2607	1020	1178	1.26	50	30
10	15	16		125	2760			1.30
12	18	19		150	2913			1.34
15	23	24		188	3142			1.39
18	28	29		225	3432			1.47

Notes: Above data is for plate thickness of 50mm and it will change when plate thickness changes.

Chemical: dyes, pigment, caustic soda, sodium carbonate, white carbon black, saponin, plumbago, bleaching powder, lithopone, fluorescent powder, potassium chlorate, potassium sulphate, ferrous sulfate, copper sulfate, silver sulfate, barium sulfate, ferric oxide, water purifying agent (aluminum sulfate, aluminium polychlorid, aluminium chloride)

Medical: antibiotics(aureomycin, erythromycin, spiramycin, jinggangmeisu, midecamycin, tetracycline, berberine, oxytetracycline), calcium phytic acid, traditional Chinese medicine, organophosphorus, saccharifying enzyme

Food: Shaoxing wine, white spirit, juice, beverage, beer, yeast, citric acid, vegetable protein, sodium cyclamate, glucose, maltose, stevioside, starch sugar, starch, rice flour, corn steep liquor, gum, monosodium glutamate, spice, oral liquid, soymilk, seaweed

Metallurgy: gold ore, silver ore, copper ore, iron ore, zinc ore, tombarthite and other powder ores　

Oil refining: white oil, sesame oil, light oil, glycerol, machine oil, vegetable oil　　

Argil: kaoline, bentonite, activated clay, porcelain clay, electronic ceramic clay　

Sewage treatment: chemical sewage, smelting sewage, electroplating sewage, leather sewage, dyeing sewage, brewing sewage, pharmaceutical sewage, paper-making sewage, daily sewage
